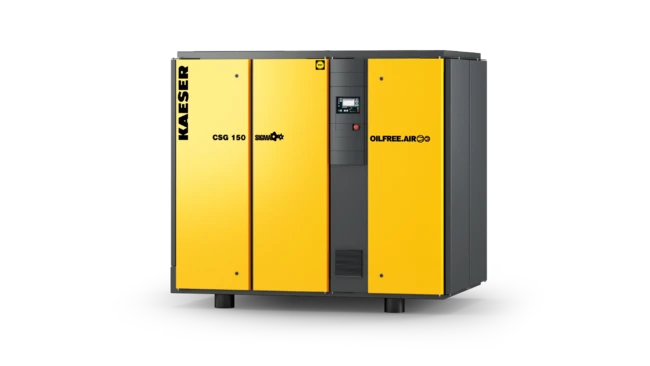

With Water Cooling 37 – 355 kW
KAESER’s water-cooled CSG compressors combine compact design, low power consumption, and outstanding heat recovery potential. Ideal for space-restricted installations, they offer energy savings and sustainable operation, with available SFC (variable-speed) and integrated i.HOC dryer versions. These units are perfectly suited for operations prioritising energy efficiency, temperature stability, and minimal environmental impact.
- Compact footprint (19% smaller via snowflake-profile piping)
- Water regulating valves for efficient cooling
- Flow-optimised inlet/outlet for reduced pressure loss
- Easy maintenance with large access doors and separate stage housings
Specifications
- Flow rate: 4.2 – 51m³/min
- Cooling: Water-cooled with stainless steel/aluminium air/water heat exchangers
- Temperature performance: Discharge air temp < ambient +10°C
- Dryer option: Available with integrated i.HOC rotation dryer
- Variable speed control: SFC models available
- Heat recovery: Up to 96% of exhaust heat usable (e.g. for water heating up to +90°C)
