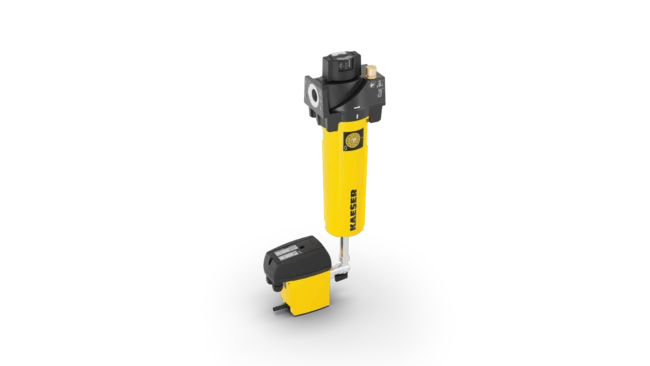

FILTER series, 0.6 – 32.0 m³/min
KAESER FILTERS provide high-performance air purification for flow rates from 0.6 to 32.0 m³/min. Designed to deliver exceptional filtration with low differential pressure, they ensure optimal protection of equipment and processes. With a corrosion-resistant aluminium housing and intuitive service features, they minimise downtime and maximise cost-efficiency.
- Purity to ISO 8573-1 standards: Removes particles, aerosols, and vapours using deep-pleated media and carbon fibre mats.
- Low pressure drop: Up to 50% lower pressure loss than typical filters, reducing compressor energy use and emissions.
- Service-friendly design: Bayonet lock ensures correct seal positioning; locking screw vents housing and prevents accidental opening.
- Durability: Corrosion-resistant aluminium housing and robust filter elements for long-term performance.
- Validation: Performance independently verified according to ISO 12500 by Lloyd’s Register.
Specifications
- Flow rate: 0.6 to 32.0 m³/min
- Max. working pressure: 16 bar
- Max. operating temperature: 66 °C
- Compressed air connections:
- Models F6–F46: G ¾ to G 2
- Models F83–F320: G 1¼ to G 3
- Inlet temperature range: 3 to 66 °C
- Ambient temperature range: 3 to 50 °C
- Weight:
- F6–F16: 2.3–4.2 kg
- F22–F46: 4.4–7.2 kg
- F83–F320: 8.3–20.6 kg
- Condensate drain voltage: (KB models only)
95–240 VAC ±10% (50–60 Hz) / 100–125 VDC ±10%
