Combination Dryers

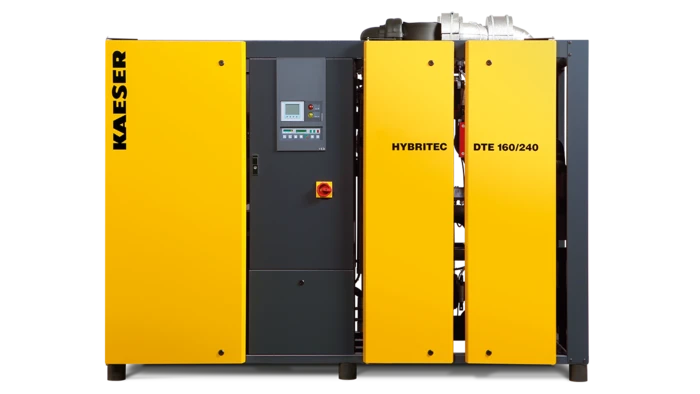

KAESER HYBRITEC dryers combine the low-pressure dew point capabilities of desiccant dryers with the energy efficiency of refrigeration dryers. Designed for flexible operation throughout seasonal changes, they allow automatic switching between +3 °C and –40 °C dew points, reducing energy usage by up to 67% compared to traditional systems. Suitable for flow rates from 12 to 150 m³/min.
- Pressure dew point options: Adjustable between +3 °C and –40 °C
- Flow rate range: 12.0 to 150.0 m³/min
- Min./max. working pressure: 4 to 10 bar (optional 16 bar)
- Energy savings: Up to 67% compared to heat-regenerating desiccant dryers
- Service life: Desiccant lasts up to 10 years due to reduced load
- Automatic summer/winter mode: Thermostat-controlled switching for seasonal efficiency
- Compact, standardised modules: Ready-to-run on delivery
- Control systems: ECO CONTROL DW with PDP sensor, scroll compressor modulation, cylinder shutdown
- Optional container installation for portable or standalone deployment
