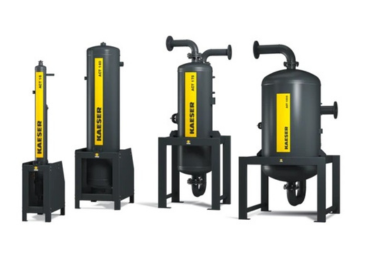

Activated Carbon Adsorbers
KAESER’s ACT series delivers ISO 8573-1 Class 1 air purity with residual oil content below 0.01 mg/m³. Designed for downstream use after dryers and filters, they ensure ultra-clean, odour-free compressed air ideal for pharmaceuticals, food, optics, and electronics. With long service life, minimal pressure loss, and optional high-pressure variants, they provide a reliable and cost-efficient solution for high-quality air requirements.
Key Features
- Residual oil content: ≤ 0.01 mg/m³ (significantly lower in most conditions)
- Flow rate range: 1.17 to 154.53 m³/min
- Working pressure: 4 to 10 bar (up to 16 or 48 bar optional)
- Low pressure drop: ≤ 0.1 bar
- Service life: Up to 12,000 full-load hours or max 5 years
- Housing: Stable steel base frame with corrosion-resistant tank
- Flow design: Stainless steel diffusers for even distribution
- Monitoring: Oil indicator and optional KAESER FILTER pre/post-filtration
- Applications: Suitable for clean air in food, pharma, optics, electronics
