MOBILAIR M100/M120/M122/123 Portable Diesel Air Compressors
Compact, powerful, and built to perform, KAESER’s diesel-driven MOBILAIR portable compressors combine high output with a space-saving design. These oil-injected units are highly adaptable, with optional components available to match specific compressed air quality requirements. A large fuel tank provides enough capacity for a full work shift, making them ideal for demanding sites. Standard models operate in ambient temperatures from -10°C to +50°C, with colder climate options available.
|

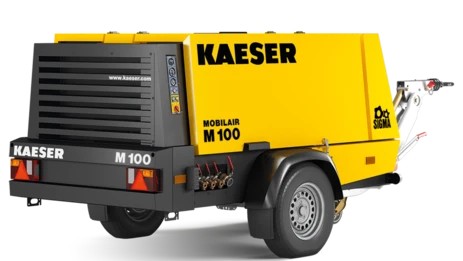

MOBILAIR M100 Flow Rate at Working Pressure (m³/min): 10.6(@7bar), 8.5(@10 bar), 7.2(@12 bar), 6.4(12@bar) CFM: 225-375 Rated Motor Power (kW): 71.7 Fuel Tank Capacity(L): 140 Operating Weight (KG): 1480 |
MOBILAIR M100 with 8.5kVA Generator Flow Rate at Working Pressure (m³/min): 10.6(@7bar), 8.5(@10 bar), 6.4(12@bar) CFM: 225-375 Rated Motor Power (kW): 71.7 Fuel Tank Capacity(L): 140 Operating Weight (KG): 1550 |
MOBILAIR M100 with 13kVA Generator Flow Rate at Working Pressure (m³/min): 10.6(@7bar), 8.5(@10 bar) CFM: 300-375 Rated Motor Power (kW): 71.7 Fuel Tank Capacity(L): 140 Operating Weight (KG): 1560 |
MOBILAIR M120
Flow Rate (m³/min): 10.2 - 12.2
CFM: 360 - 410
Rated Motor Power (kW): 97
Fuel Tank Capacity(L): 180
Operating Weight (KG): 1630
MOBILAIR M122
Flow Rate at Working Pressure (m³/min): 11.1 (@7 bar), 10.1 (@8.6 bar), 9.5 (@10 bar), 8.2 (@12 bar), 7.3 (@14 bar)
CFM: 390-260
Rated Motor Power (kW): 83
Fuel Tank Capacity(L): 170
Operating Weight (KG): 1865
MOBILAIR M123
Flow Rate at Working Pressure (m³/min): 11.4 (@8.6 bar),10.8 (@10 bar),9.7 (@12 bar), 8.1 (@14 bar)
CFM: 285-405
Rated Motor Power (kW): 88
Fuel Tank Capacity(L): 170
Operating Weight (KG): 1945
