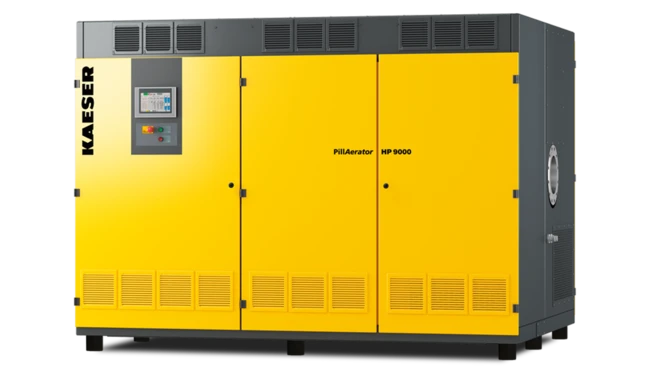

Turbo Blowers 150 & 300 kW

Oil-free, wear-free air supply for efficient low-pressure applications.

Designed for wastewater aeration, fermentation, and flotation, KAESER’s PillAerator turbo blowers combine high-speed magnetic bearing technology with efficient direct-drive motors. The result is a compact, quiet, and energy-saving blower system ideal for continuous, maintenance-free operation.

• Magnetic bearings: Oil-free, contact-free and wear-free

• Energy savings: Up to 25% more efficient than conventional blowers

• Maintenance-free motor: No lubrication or bearing changes required

• Quiet operation: Noise levels as low as 74 dB(A)

• Smart monitoring: 9” touchscreen with remote communication options

• Compact design: Plug-and-play with integrated filtration and cooling

• Optional heat recovery up to 20 kW (300 kW model)

150 kW Model

• Flow rate: 1,000 – 7,700 m³/h (up to 128 m³/min)

• Pressure differential: 0.3 – 1.3 bar

• Noise level: Max 74 dB(A)

• Motor speed: Up to 30,000 rpm

• Connection: DN250 / PN10



• Cooling: Closed water circuit

• Dimensions (W×D×H): 1800 × 1525 × 2125 mm

• Weight: 1815 kg

300 kW Model

• Flow rate: 2,800 – 15,800 m³/h (up to 263 m³/min)
• Pressure differential: 0.3 – 1.3 bar
• Noise level: Max 76 dB(A)
• Motor speed: Up to 30,000 rpm
• Connection: DN400 / PN10
• Cooling: Closed water circuit with heat recovery (up to 20 kW)
• Dimensions (W×D×H): 2930 × 2125 × 2155 mm
• Weight: 3785 kg
